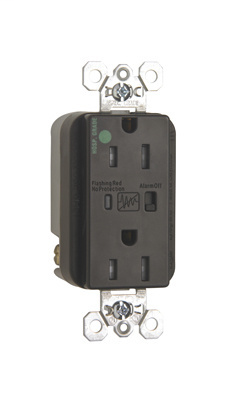

P&S TR8200SP HG SPD RECP TR 15A/125

Manufacturer: Legrand / Pass & Seymour | Catalog # TR8200SP | North Coast Part # 1267340
$226.12 /ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Tamper-Resistant Hospital Grade Extra Heavy-Duty Surge ProtectiveDuplexReceptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back and Side Wire, 15amp 125volt, Red.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
15 Amp
Applications
Commercial,Multi-Dwelling Unit,Residential
Connection Type
Back Wire,Side Wire
Duty Rating
Extra Heavy Duty
Frequency
60 Hz
Grade
Specification
Indicator
Audible Alarm,LED
Indoor Outdoor
Indoor
Material
Thermoplastic
Number of Phases
1 Phase
Number of Poles
2
Number of Wires
3
Operating Temperature
40 degrees F
Outlet Type
Hospital Grade,Tamper-Resistant
Size
.94" Depth x 1.75" Width x 3.82" Height
TC Connection
Side & Back Wire
Type
Duplex
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007020403
Class
IG
Color
Brown
GTiN
00785007020403
Product UPC
78500702040
UNSPSC
39121406

Dimensions

Depth
1.225 Inch
Height
3.82 Inch
Warranty Length
1 yr
Width
1.750 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
  • Backed-out tri-drive brass terminal screws for faster installation.
  • Internal screw-pressure-plate back and side wire capability.
  • Two back wire holes for additional wiring flexibility.
  • Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
  • .032 inch thick brass triple-wipe power contacts.
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
